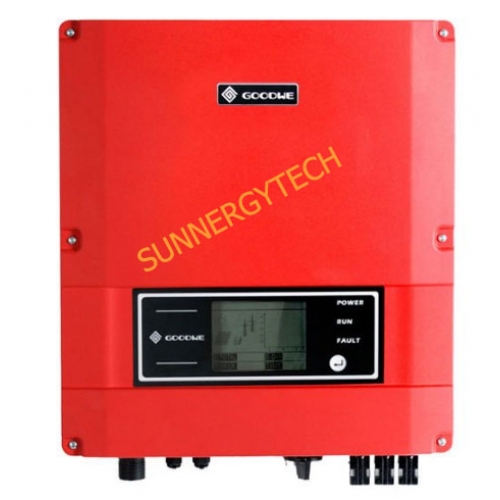

Grid Tie Inverter 1.5KW-10KW
 Click to enlarge |
|
Detailed Product Description
1. SAA VDE,CE,G83/G59, etc certificates
2. THDi <1%
3. MPPT>99.5%
4. Maximum Efficiency>97.8%
5. European Efficiency>97.4%
1. STC_GW1500-SS Advantages
1) High quality of power generation connected to the grid:THDi<1%.
2) Maximize Solar Energy: MPPT Efficiency>99.5%.
3) Wide range of DC input & MPPT voltage:125V ~ 450V.
4) Easy for installation: much smaller than most similar products.
5) Easy for installation: 30% lighter than most similar products.
6) Lower Noise level <25dB
7) Easy for operation & monitoring: 4 Inch LCD Display.
8) Advanced communication interface: USB interface integrated
2. Detailed Parameters of GW1500-SS
|
Model name |
GW1500-SS |
|
|
DC input Data |
Max. PV-generator power [W] |
1800 |
|
Max. DC Voltage [V] |
450 |
|
|
MPPT voltage range [V] |
125~450 |
|
|
Turn on DC Voltage [V] |
125 |
|
|
Max. DC work current [A] |
12 |
|
|
Number of MPP trackers |
1 |
|
|
DC-connection |
MC IV Connector |
|
|
Turn on power [W] |
5 |
|
|
AC Output Data |
Norminal AC power |
1500 |
|
Max.AC power |
1650 |
|
|
Max.output current(A) |
8 |
|
|
Norminal output voltage range |
According to VDE 0126-1-1/A1, RD1663, ENEL, G83,G59, SAA |
|
|
AC grid frequency |
According to VDE 0126-1-1/A1, RD1663, ENEL, G83,G59, SAA |
|
|
THD(AC output current) |
<1% |
|
|
Power factor |
~1(Norminal power) |
|
|
AC Connector |
Single phase With Clamps |
|
|
Efficiency |
Max. efficiency |
97.00% |
|
European efficiency |
>96% |
|
|
MPPT adaptation efficiency |
>99.5% |
|
|
Safty Equipment |
Leakage current monitoring unit |
Integrated |
|
DC switch |
Optional |
|
|
Islanding protection |
AFD |
|
|
Grid Monitoring |
According to VDE0126-1-1/A1, AS4777.1/2/3, RD1663, ENEL Guied, G83, G59-2 |
|
|
Normative Reference |
EMC- compliant according to |
EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 |
|
Safety compliance |
According to IEC62109-1, AS3100 |
|
|
General Data |
Dimensions (WxHxD) [mm] |
390*417*142 |
|
Net Weight [kg] |
18 |
|
|
Housing |
For outdoor and indoor |
|
|
Mounting information |
Wall bracket |
|
|
Operating temperature range |
-20~60°C(up 45°C derating) |
|
|
Relative humidity |
0~95% |
|
|
Site altitude[m] |
2000 |
|
|
IP protection type |
IP65 |
|
|
Topology |
Transformerless |
|
|
Cooling concept |
Nature Convection |
|
|
Noise level[dB] |
<25 |
|
|
Display |
3LED,4 inch LCD |
|
|
Communication |
USB2.0;RS485(wireless/Bluetooth optional) |
|
|
Standard warranty[years] |
5/10( optional) |
|
