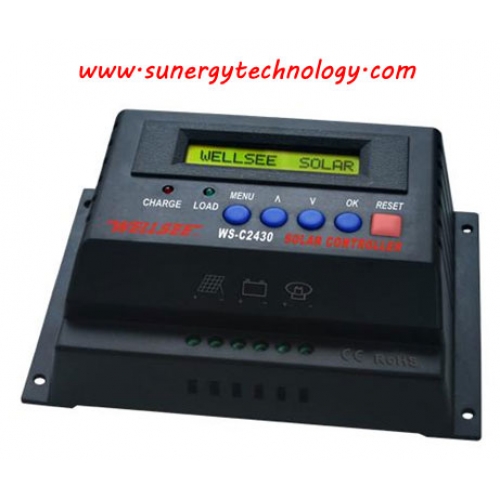

Solar charger controller 12/24V 25A

Solar charger controller 12/24V 25A

Code: STC-C2430-25

Brand: WELLSEE

Short detail:รายละเอียดย่อ

เครอ_ื งชาร์ตประจุแบตเตอรีด_ ว้ ยโซล่าเซลระบบ 12/24V 25A

ควบคุมการชาร์ตด้วย CPU สามารถตั้งค่าการชาร์ตได้

Detail:รายละเอียดทั้งหมด

12V/24V 25A Solar Charge Controller

weight: 500g

size: 164*110*45mm

WS-C2430 series charge controllers (WELLSEE solar charge regulator) applies in solar photovoltaic systems, which coordinates the working of solar panels, batteries and loads. WS-C solar controllers add some protection functions, so that the entire system can be in efficient and safe operation.WS-C2430 series charge controllers apply to all types of photoelectric panels and various types of batteries, MCU (Micro-Processing Controller) has PMW (Pulse Modulation Wide-frequency) 0~100% variable duty cycle process. According to the types and actual charging situation of the battery, WS-C

solar charge controller series (solar power controller, solar charge regulator, solar battery controller) can provide the fast and best charging voltage and electricity from the PV panel. C25 and C60 series are equipped with advanced man-machine interactive function, so the user can adjust the charging voltage.

TECHNICAL INDEX:

Functions:

1. Overload protection

2. Short circuit protection

3. Converse discharge protection

4. Reverse polarity connection protection

5. Thunder protection

6. Low voltage protection

7. Overcharge protection

8. Batteries stop and charge voltage HVD sets up

9. Charge and low voltage LCD sets up

10. Display the capability of the battery SOC

11. Loads and comeback setups.

12. Intellectualized temperature compensation

13. Record and calculate the charged AH and display it on the LCD screen.

14. Record and calculate the discharged AH and display it on the LCD screen

15. CPU control and LCD display
