Solar charger controller 12/24V 30A

Solar charger controller 12/24V 30A

Code : STC-C2430-30

Short detail:รายละเอียดย่อ

เครื่องชาร์ตประจุแบตเตอรี่ด้วยโซล่าเซลระบบ 12/24V 30A

ควบคุมการชาร์ตด้วย CPU สามารถตั้งค่าการชาร์ตได้

รายละเอียดทั้งหมด

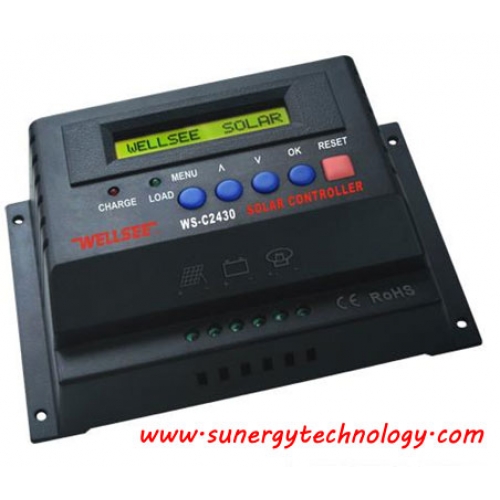

12V/24V 30A Solar Charge Controller

weight: 500g

size: 164*110*45mm

WS-C2430 series charge controllers (WELLSEE solar charge regulator) applies in solar photovoltaic

systems, which coordinates the working of solar panels, batteries and loads. WS-C solar controlers add

some protection functions, so that the entire system can be in efficient and safe operation.

WS-C2430 series charge controllers apply to all types of photoelectric panels and various types of

batteries, MCU (Micro-Processing Controller) has PMW (Pulse Modulation Wide-frequency) 0~100%

variable duty cycle process. According to the types and actual charging situation of the battery, WS-C

solar charge controller series (solar power controller, solar charge regulator, solar battery controller) can

provide the fast and best charging voltage and electricity from the PV panel. C25 and C60 series are

equipped with advanced man-machine interactive function, so the user can adjust the charging voltage.

TECHNICAL INDEX:

Functions:

1. Overload protection

2. Short circuit protection

3. Converse discharge protection

4. Reverse polarity connection protection

5. Thunder protection

6. Low voltage protection

7. Overcharge protection

8. Batteries stop and charge voltage HVD sets up

9. Charge and low voltage LCD sets up

10. Display the capability of the battery SOC

11. Loads and comeback setups.

12. Intellectualized temperature compensation

13. Record and calculate the charged AH and display it on the LCD screen.

14. Record and calculate the discharged AH and display it on the LCD screen.

15. CPU control and LCD display
